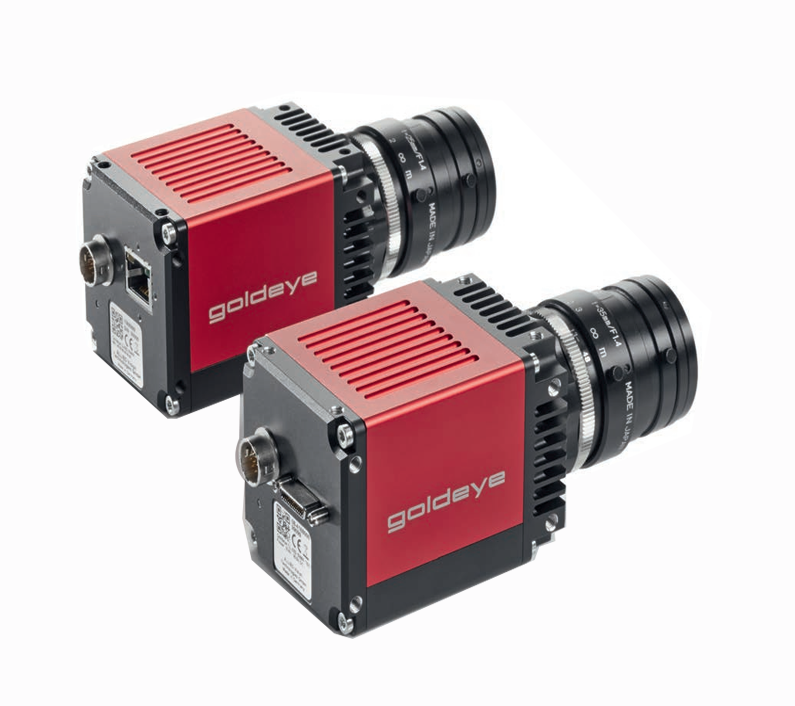

德国AVT红外相机介绍
砚拓代理的德国AVT全线相机产品，CGOLDEYE-CL系列是最快的QVGA分辨率短波红外（SWIR）相机，具有相机链路接口。帧速率高达344 fps的全分辨率，多用途的应用领域可以得到解决，并可以加快进程。为了使光谱范围从900 nm到1700 nm的低噪声成像，相机配备有氮气填充的冷却室。所有 Goldeye 相机都配备有主动热电制冷 (TEC) 装置，可降低噪声，延长曝光时间并确保恒定的图像质量，Goldeye 相机可以捕获低噪声图像，是超出了可见光谱的工业和科学应用的理想选择。标准化的相机链接接口与GEncP支持和综合I/O控制选项简化了与您的软件解决方案的连接以及与其他系统组件的同步。
集成热电传感器冷却和几个机载图像校正功能有助于GaldYe的出色的图像质量。因优异的图像质量，噪声小，动态范围高。它们非常适合于许多行业分支中的许多典型的SWIR应用：
· 回收工业：塑料分拣
· 半导体工业：太阳能电池和芯片检测
· 医学成像，科学：高光谱成像，显微术，OCT
· 金属和玻璃工业：热物体的热成像（250°C到800°C）
· 农业产业：航空遥感
· 印刷业：纸币检验
· 电子工业：激光束分析
· 监视和安全：视觉增强（例如，通过雾或夜视）
效益与特色
.充氮冷却室避免冷凝
.高达344fps的全分辨率
.GenCP支持的相机链接接口
.综合I/O控制选项
.机载图像自动校正
.TEC1sensor cooling
.延长工作温度范围
主要应用:
l 红外成像
l 光伏检测
l 硅晶圆检测
产品参数：
|
型号 |
GOLDEYE |
GOLDEYE |
GOLDEYE |
GOLDEYE |
GOLDEYE |
GOLDEYE |
|
接口 |
Camera Link Base |
Camera Link Base |
Camera Link Base |
Camera Link Base |
Camera Link Base |
Camera Link Base |
|
分辨率 |
320 (H) × 256 (V) |
320 (H) × 256 (V) |
636 (H) × 508 (V) |
636 (H) × 508 (V) |
640 (H) × 512 (V) |
640 (H) × 512 (V) |
|
传感器 |
InGaAs FPA 320 × 256 |
InGaAs FPA 320 × 256 |
InGaAs FPA 636 × 508 |
InGaAs FPA 636 × 508 |
InGaAs FPA 640 × 512 |
InGaAs FPA 640 × 512 |
|
传感器类型 |
InGaAs |
InGaAs |
InGaAs |
InGaAs |
InGaAs |
InGaAs |
|
传感器尺寸 |
No standard size |
No standard size |
No standard size |
No standard size |
No standard size |
No standard size |
|
像元尺寸 |
30 µm × 30 µm |
30 µm × 30 µm |
25 µm × 25 µm |
25 µm × 25 µm |
15 µm × 15 µm |
15 µm × 15 µm |
|
Lens mounts (available) |
C-Mount, F-Mount, M42-Mount |
C-Mount, F-Mount, M42-Mount |
C-Mount, F-Mount, M42-Mount |
C-Mount, F-Mount, M42-Mount |
C-Mount, F-Mount, M42-Mount |
C-Mount, F-Mount, M42-Mount |
|
最大满帧帧率 |
344 fps |
344 fps |
100 fps |
100 fps |
301 fps |
301 fps |
|
ADC |
14 Bit |
14 Bit |
14 Bit |
14 Bit |
14 Bit |
14 Bit |
|
缓存(RAM) |
|
256 MByte |
256 MByte |
256 MByte |
256 MByte |
|
|
成像性能 |
||||||
|
暗噪声 |
420 eˉ (Gain0), 170 eˉ (Gain1) |
420 eˉ (Gain0), 170 eˉ (Gain1) |
400 eˉ (Gain0), 170 eˉ (Gain1) |
400 eˉ (Gain0), 170 eˉ (Gain1) |
390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2) |
390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2) |
|
饱和电子数 |
2.5 Meˉ (Gain0), 170 keˉ (Gain1) |
2.5 Meˉ (Gain0), 170 keˉ (Gain1) |
1.9 Meˉ (Gain0), 39 keˉ (Gain1), |
1.9 Meˉ (Gain0), 39 keˉ (Gain1), |
1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2) |
1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2) |
|
动态范围 |
75 dB (Gain0), 60 dB (Gain1) |
75 dB (Gain0), 60 dB (Gain1) |
73 dB (Gain0), 47 dB (Gain1), |
73 dB (Gain0), 47 dB (Gain1), |
69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2) |
69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2) |
|
输出 |
||||||
|
Bit位数 |
8 - 14 Bit |
8 - 14 Bit |
8 - 14 Bit |
8 - 14 Bit |
8 - 14 Bit |
8 - 14 Bit |
|
黑白像素格式 |
|
|
Mono8, Mono12, Mono12Packed, Mono14 |
Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry 1X2 1Y: Mono8, Mono12 |
Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry 1X2 1Y: Mono8, Mono12 |
Mono8, Mono12, Mono12Packed, Mono14 |
|
通用输入输出口(GPIOs) |
||||||
|
TTL I/Os |
LVTTL I/Os: 1 input, 1 output |
LVTTL I/Os: 1 input, 1 output |
LVTTL I/Os: 1 Input, 1 Output |
LVTTL I/Os: 1 Input, 1 Output |
LVTTL I/Os: 1 input, 1 output |
LVTTL I/Os: 1 input, 1 output |
|
光耦 I/Os |
1 input, 2 outputs |
1 input, 2 outputs |
1 input, 2 outputs |
1 input, 2 outputs |
1 input, 2 outputs |
1 input, 2 outputs |
|
RS232 |
115 200 Baud, 8N1 (adjustable) |
115 200 Baud, 8N1 (adjustable) |
115 200 Baud, 8N1 (adjustable) |
115 200 Baud, 8N1 (adjustable) |
115 200 Baud, 8N1 (adjustable) |
115 200 Baud, 8N1 (adjustable) |
|
工作条件/尺寸 |
||||||
|
工作温度 |
负20 °C to +55 °C (case) |
负20 °C to +55 °C (case) |
负20 °C to +55 °C (case) |
负20 °C to +55 °C (case) |
负20 °C to +55 °C (case) |
负20 °C to +55 °C (case) |
|
电源要求 (DC) |
10.8 V to 30.0 V |
10.8 V to 30.0 V |
10.8 V to 30.0 V |
10.8 V to 30.0 V |
10.8 V to 30.0 V |
10.8 V to 30.0 V |
|
功耗 |
10.5 W (at 12 VDC) |
10.5 W (at 12 VDC) |
19 W (at 12 VDC) |
10 W at 12 VDC |
11.8 W at 12 VDC |
6.0 W (at 12 VDC) |
|
重量 |
760 g (with C-Mount adapter) |
320 g (with C-Mount adapter) |
780 g (with C-Mount adapter) |
340 g (with C-Mount adapter) |
350 g (with C-Mount adapter) |
320 g (with C-Mount adapter) |
|
尺寸(L × W × H in mm) |
90 × 80 × 80 |
78 × 55 × 55 |
90 × 80 × 80 |
78 × 55 × 55 |
78 × 55 × 55 |
78 × 55 × 55 |
|
符合规范 |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
